• Black Bodyside Cladding and Black Wheel Well Trim
• Black Door Handles
• Black Power Heated Side Mirrors w/Power Folding and Turn Signal Indicator
• Black Rear Bumper w/1 Tow Hook
• Black Side Windows Trim and Black Front Windshield Trim
• Body-Colored Front Bumper
• Chrome Grille
• Fixed Rear Window w/Defroster
• Ford Co-Pilot360 - Autolamp Auto On/Off Reflector Halogen Auto High-Beam Headlamps w/Delay-Off
• Front Fog Lamps -inc: Auxiliary lamps that are generally integrated into the front fascia and designed to help illuminate the roadway during poor visibility
• Full-Size Spare Tire Stored Underbody w/Crankdown
• Fully Galvanized Steel Panels
• Headlights-Automatic Highbeams
• Rain Detecting Variable Intermittent Wipers
• Sliding Rear Passenger Side Door
• Split Swing-Out Rear Cargo Access
• Steel Spare Wheel
• Tailgate/Rear Door Lock Included w/Power Door Locks
• Tires: 235/65R16C 121/119 R AS BSW
• Wheels: 16" Silver Steel w/Exposed Lug Nuts

• 15-Passenger Seats
• 253-Degree Rear Door
• 3.73 Limited-Slip Axle Ratio
• 3rd row seats: split-bench
• 4-Wheel Disc Brakes
• 4th-Row Bench Seat
• 8 Speakers
• ABS brakes
• AM/FM radio
• Air Conditioning
• Auto High-beam Headlights
• Brake assist
• Cloth Front Bucket Seats
• Dark Palazzo Gray Cloth Bucket Seats
• Delay-off headlights
• Driver door bin
• Driver vanity mirror
• Driver's Seat Mounted Armrest
• Dual AGM Batteries (70 Amp-hr Each)
• Dual front impact airbags
• Dual front side impact airbags
• Electronic Air Temperature Control
• Electronic Stability Control
• Front Bucket Seats
• Front Fog Lamps
• Front License Plate Bracket
• Front Sensing System
• Front anti-roll bar
• Front beverage holders
• Front reading lights
• Front wheel independent suspension
• Fully automatic headlights
• Illuminated entry
• Internet access capable: FordPass Connect 4G
• Large Center Console
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Panic alarm
• Passenger Running Board
• Passenger door bin
• Passenger seat mounted armrest
• Passenger vanity mirror
• Power door mirrors
• Power steering
• Power windows
• Privacy Glass
• Radio: AM/FM Stereo w/SYNC 4 & Nav
• Rain sensing wipers
• Rear air conditioning
• Rear window defroster
• Rear-Window Defroster
• Remote keyless entry
• Reverse Sensing System
• Side Sensing System
• Speed control
• Steering wheel mounted audio controls
• Tachometer
• Telescoping steering wheel
• Tilt steering wheel
• Traction control
• Variably intermittent wipers
• Wheels: 16" Silver Steel w/Exposed Lug Nuts

• 2 12V DC Power Outlets
• 4-Way Driver Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Analog Appearance
• Cargo Space Lights
• Carpet Floor Trim
• Cloth Front Bucket Seats
• Cruise Control w/Steering Wheel Controls
• Dark Palazzo Gray Cloth Bucket Seats -inc: 2-way manual driver seat w/lumbar, 2-way manual passenger seat and driver and passenger armrest
• Day-Night Rearview Mirror
• Driver And Front Passenger Armrests, Rear Seat Mounted Armrest Outboard Only and Mounted On Seat Outboard Only
• Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination
• Driver Foot Rest
• Driver Information Center
• Electronic Air Temperature Control
• Fade-To-Off Interior Lighting
• Fixed Rear Windows and Fixed 3rd Row Windows
• FordPass Connect 4G Mobile Hotspot Internet Access
• Front And Rear Map Lights
• Front Cupholder
• Front Seats w/Cloth Back Material and Manual Driver Lumbar
• Front Sensing System
• Full Carpet Floor Covering -inc: Carpet Front Floor Mats
• Full Cloth Headliner
• Full Floor Console w/Storage and 2 12V DC Power Outlets
• HVAC -inc: Underseat Ducts
• Instrument Panel Bin, Driver / Passenger And Rear Door Bins

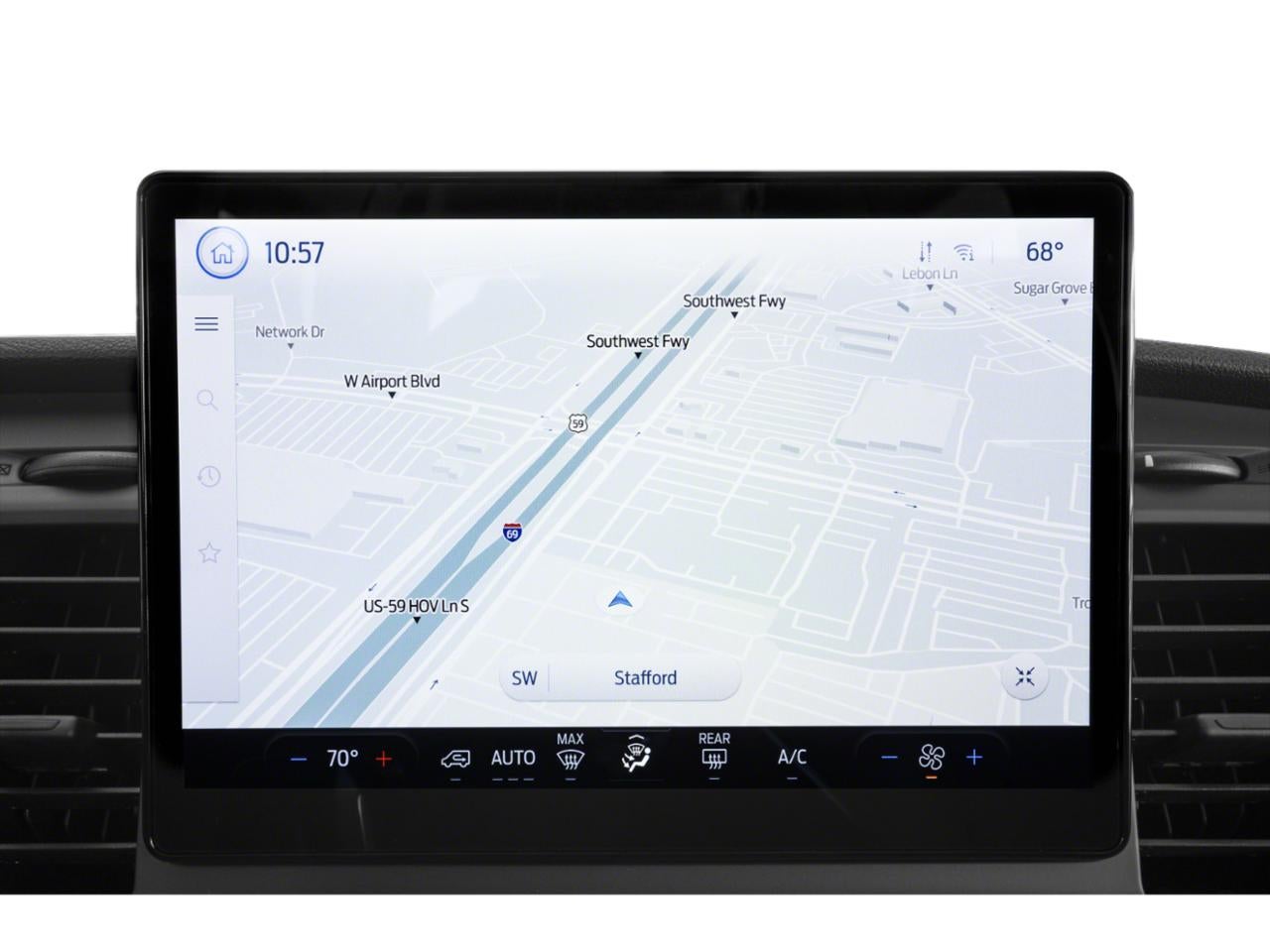

• Integrated Navigation System w/Voice Activation
• Interior Trim -inc: Metal-Look Instrument Panel Insert
• Large Center Console -inc: an integrated shifter, a dual cup holder and an additional storage area
• Locking Glove Box
• Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
• Manual Tilt/Telescoping Steering Column
• Power 1st Row Windows w/Driver 1-Touch Down
• Power Door Locks w/Autolock Feature
• Pre-Collision Assist w/Automatic Emergency Braking
• Rear Cupholder
• Rear HVAC
• Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
• Removable Bench Front Facing Rear Seat
• Removable Split-Bench 3rd Row Seat Front, 3 Manual and Adjustable Head Restraints
• Removable Split-Bench Front Facing 4th Row Seat Number, Control and Type Head Restraint
• Reverse Sensing System
• Securilock Anti-Theft Ignition (pats) Immobilizer
• Side Sensing System -inc: Works similar to the reverse sensing system, as it sounds a tone when the vehicle gets close to surrounding vehicles and other objects
• Smart Device Integration
• Trip Computer
• Urethane Gear Shifter Material

• 25.1 Gal. Fuel Tank
• 2890# Maximum Payload
• 3.73 Limited-Slip Axle Ratio
• 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
• 50-State Emissions System
• 70-Amp/Hr Maintenance-Free Battery w/Run Down Protection
• Automatic Full-Time All-Wheel
• Electric Power-Assist Steering
• Front Anti-Roll Bar
• GVWR: 9,550 lb
• Gas-Pressurized Front Shock Absorbers and HD Gas-Pressurized Rear Shock Absorbers
• HD 250 Amp Alternator
• Permanent Locking Hubs
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs
• Strut Front Suspension w/Coil Springs

• 911 Assist Emergency Sos Capability
• ABS And Driveline Traction Control
• Airbag Occupancy Sensor
• BLIS with Trailer Tow Coverage Blind Spot
• Cross-Traffic Alert
• Driver Monitoring-Alert
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Ford Co-Pilot360 w/Side Wind Stabilization Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• High Resolution Digital Camera Back-Up Camera
• Lane-Keeping System Lane Departure Warning
• Lane-Keeping System Lane Keeping Assist
• Low Tire Pressure Warning
• Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
• Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags
• Side Impact Beams

Passenger Van XLT (302A)

Exterior Upgrade Package – SRW

• 3rd Row Seat
• Bluetooth® Connection
• Navigation System
• WiFi Hotspot
• Smart Device Integration
• Steering Wheel Audio Controls
• Rear A/C
• Back-Up Camera
• Rear Parking Aid
• Stability Control
• Brake Assist
• Blind Spot Monitor
• Lane Departure Warning
• Cross-Traffic Alert
• Lane Keeping Assist
• Cloth Seats
• MP3 Player
• Auxiliary Audio Input
• Cruise Control
• Adjustable Steering Wheel
• Fog Lamps
• Variable Speed Intermittent Wipers
• Keyless Entry
• Third Passenger Door

• Vehicle
• Rear Door Type: Split Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Maximum Alternator Capacity (amps): 250
• Weight Information
• Base Curb Weight (lbs): 6439
• Base Curb Weight (lbs): 6359
• Gross Axle Wt Rating - Front (lbs): 4630
• Gross Axle Wt Rating - Rear (lbs): 5780
• Curb Weight - Front (lbs): 3449
• Curb Weight - Rear (lbs): 2911
• Gross Vehicle Weight Rating Cap (lbs): 9550
• Gross Combined Wt Rating (lbs): 11200
• Gross Combined Wt Rating (lbs): 10800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4100
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3900
• Dead Weight Hitch - Max Tongue Wt. (lbs): 410
• Dead Weight Hitch - Max Tongue Wt. (lbs): 390
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 3900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 410
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 390
• Maximum Trailering Capacity (lbs): 4100
• Maximum Trailering Capacity (lbs): 3900
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: LT235/65SR16
• Rear Tire Size: LT235/65SR16
• Spare Tire Size: Full-Size
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720
• Wheels
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Size (in): 16 X 6.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Doors
• Side Door Type: Sliding
• Exterior Dimensions
• Wheelbase (in): 148
• Length, Overall (in): 235.5
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 99.2
• Overhang, Front (in): 40.3
• Ground to Top of Load Floor (in): 28.8
• Ground Clearance, Front (in): 6
• Ground Clearance, Rear (in): 6
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 141.7
• Cargo Area Length @ Floor to Seat 2 (in): 107.1
• Cargo Area Length @ Floor to Seat 3 (in): 76.2
• Cargo Area Width @ Beltline (in): 69.8
• Cargo Box Width @ Wheelhousings (in): 53.7
• Cargo Box (Area) Height (in): 67.6
• Cargo Volume to Seat 1 (ft³): 336.1
• Cargo Volume to Seat 3 (ft³): 93.9
• Cargo Volume to Seat 4 (ft³): 93.9
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 52
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Front Hip Room (in): 60.7
• Second Head Room (in): 55.8
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 71.4
• Second Hip Room (in): 69.6
• Third Head Room (in): 55.8
• Third Leg Room (in): 35.6
• Third Shoulder Room (in): 67
• Third Hip Room (in): 67.3
• Summary
• Vehicle Name: Ford Transit Passenger Wagon
• Body Style: Medium Roof Van
• Body Code: V
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
