• Auto On/Off Reflector Halogen Daytime Running Lights Preference Setting Headlamps
• Black Door Handles
• Black Front Bumper w/Black Rub Strip/Fascia Accent
• Black Grille
• Black Side Windows Trim and Black Front Windshield Trim
• Front Windshield -inc: Sun Visor Strip
• Fully Galvanized Steel Panels
• Light Tinted Glass
• Tires: LT225/75R16E BSW A/S -inc: Hankook DynaPro HT
• Variable Intermittent Wipers
• Wheels: 16" x 6" White Painted Steel

• 16" x 6" White Painted Steel Wheels
• 2 Speakers
• 4-Wheel Disc Brakes
• 4.56 Axle Ratio
• ABS brakes
• AM/FM radio
• Air Conditioning
• Driver door bin
• Driver's Seat Mounted Armrest
• Dual High Back Buckets
• Dual front impact airbags
• Dual rear wheels
• Electronic Stability Control
• Front Black Vinyl Floor Covering
• Front Bucket Seats
• Front anti-roll bar
• Front beverage holders
• Front wheel independent suspension
• Fully automatic headlights
• GVWR: 14,500 Lb Payload Package
• Low tire pressure warning
• Passenger door bin
• Passenger seat mounted armrest
• Power steering
• Radio: AM/FM Stereo with Clock Display and 2 Speakers
• Rear anti-roll bar
• Telescoping steering wheel
• Tilt steering wheel
• Traction control
• Variably intermittent wipers
• Vinyl Bucket Seats
• Voltmeter

• 2 12V DC Power Outlets
• 4-Way Driver Seat -inc: Manual Recline and Fore/Aft Movement
• 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
• Analog Appearance
• Driver And Front Passenger Armrests
• Driver And Passenger Door Bins and 1st Row Underseat Storage
• Driver Information Center
• Dual High Back Buckets
• Fixed Front Head Restraints
• Front Black Vinyl Floor Covering
• Front Cupholder
• Front Vinyl Headliner
• Glove Box
• Manual 1st Row Windows
• Manual Air Conditioning
• Manual Tilt/Telescoping Steering Column
• Partial Floor Console w/Storage and 2 12V DC Power Outlets
• Tracker System
• Urethane Gear Shifter Material
• Vinyl Bucket Seats

• 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs and Hill Hold Control
• 4.56 Axle Ratio
• 50 State Emission System
• 55 Gal. Fuel Tank
• 78-Amp/Hr 750CCA Maintenance-Free Battery
• 8980# Maximum Payload
• Dual Rear Wheels
• Front And Rear Anti-Roll Bars
• Front Suspension w/Coil Springs
• GVWR: 14,500 lb Payload Package
• HD 210 Amp Alternator
• HD Gas-Pressurized Shock Absorbers
• Hydraulic Power-Assist Steering
• Rear-Wheel Drive
• Single Stainless Steel Exhaust
• Solid Axle Rear Suspension w/Leaf Springs

• ABS And Driveline Traction Control
• Collision Mitigation-Front
• Dual Stage Driver And Passenger Front Airbags
• Electronic Stability Control (ESC)
• Low Tire Pressure Warning
• Outboard Front Lap And Shoulder Safety Belts -inc: Height Adjusters and Pretensioners
• Side Impact Beams

782A

High-Series Exterior Upgrade Package

• Auxiliary Audio Input
• Bluetooth® Connection

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 5435
• Base Curb Weight (lbs): 5438
• Base Curb Weight (lbs): 5431
• Gross Axle Wt Rating - Front (lbs): 5000
• Gross Axle Wt Rating - Rear (lbs): 9600
• Curb Weight - Front (lbs): 3048
• Curb Weight - Rear (lbs): 2383
• Gross Vehicle Weight Rating Cap (lbs): 14500
• Gross Combined Wt Rating (lbs): 22000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Maximum Trailering Capacity (lbs): 7500
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5000
• Spring Capacity - Rear (lbs): 9600
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 9600
• Axle Ratio (:1) - Front: 4.56
• Axle Ratio (:1) - Rear: 4.56
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T68
• Rear Tire Order Code: T68
• Front Tire Size: LT225/75SR16
• Rear Tire Size: LT225/75SR16
• Front Tire Capacity (lbs): 5000
• Rear Tire Capacity (lbs): 9880
• Revolutions/Mile @ 45 mph - Front: 709
• Revolutions/Mile @ 45 mph - Rear: 709
• Wheels
• Front Wheel Size (in): 16 X 6
• Rear Wheel Size (in): 16 X 6
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 54.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 55
• Exterior Dimensions
• Wheelbase (in): 158
• Length, Overall (in): 261.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 80
• Overhang, Rear w/o bumper (in): 68.5
• Cab to Axle (in): 100
• Cab to End of Frame (in): 168.5
• Ground to Top of Load Floor (in): 26
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary

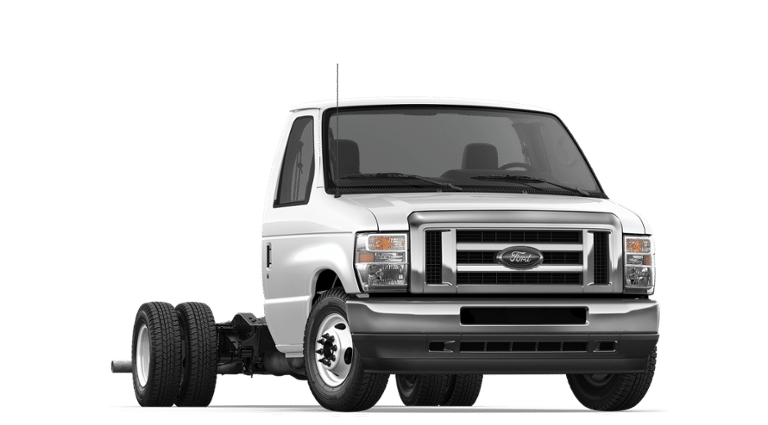

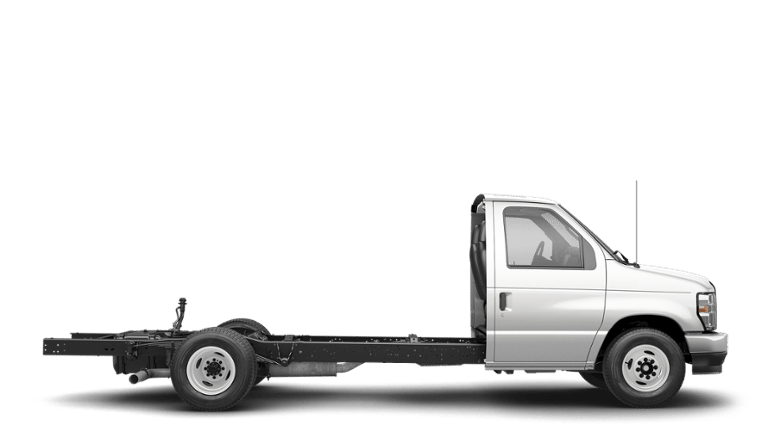

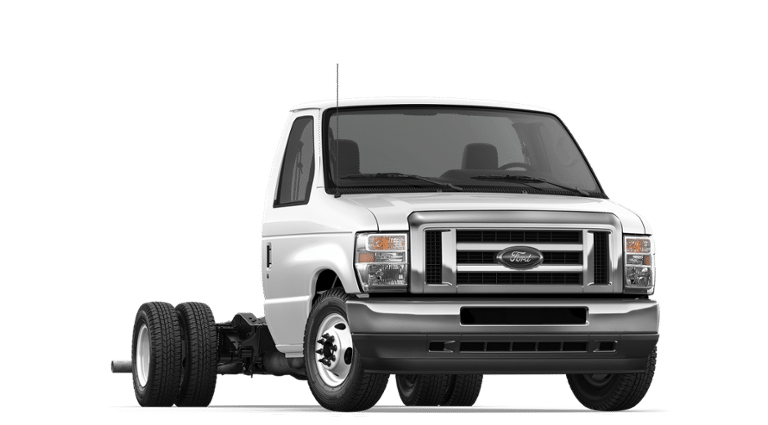

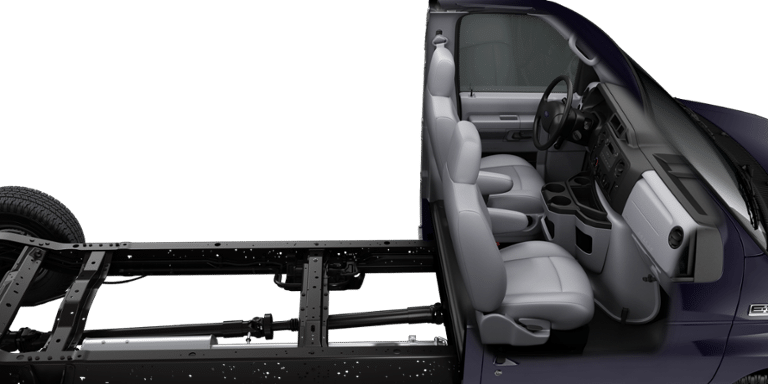

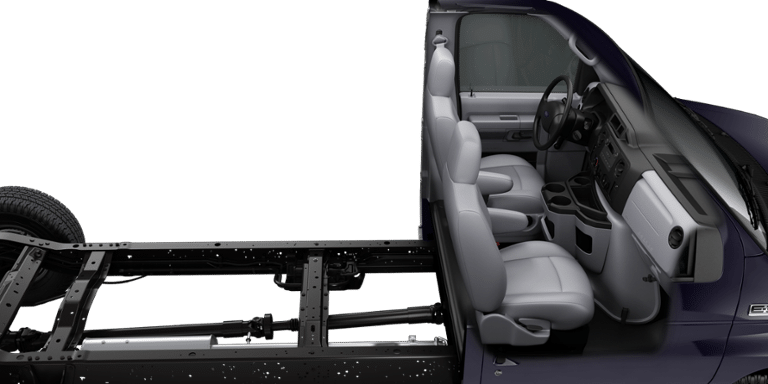

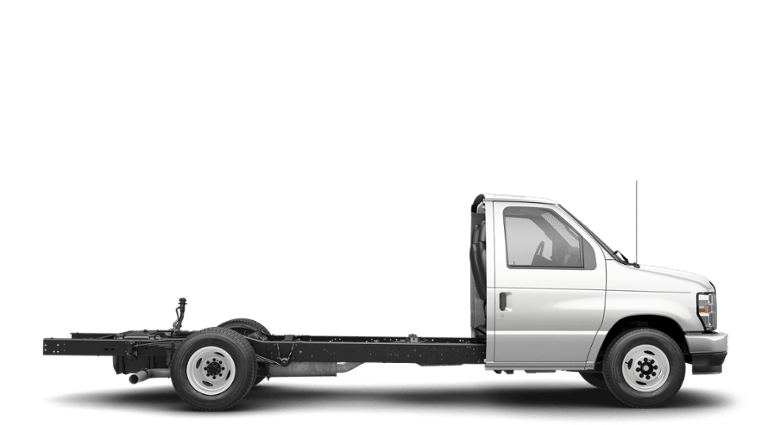

• Vehicle Name: Ford E-Series Cutaway
• Body Style: Chassis
• Body Code: H
